- From 1600 A to 5000 A
- Type-tested
- Planning and construction by our specialists
- Documentation of the system done by Schrack Technik
- Highest quality according to the state of the art
- High system safety and maximum operational reliability
- From IP31 to IP54
- Busbar installation possible in multiple levels
- Modular design

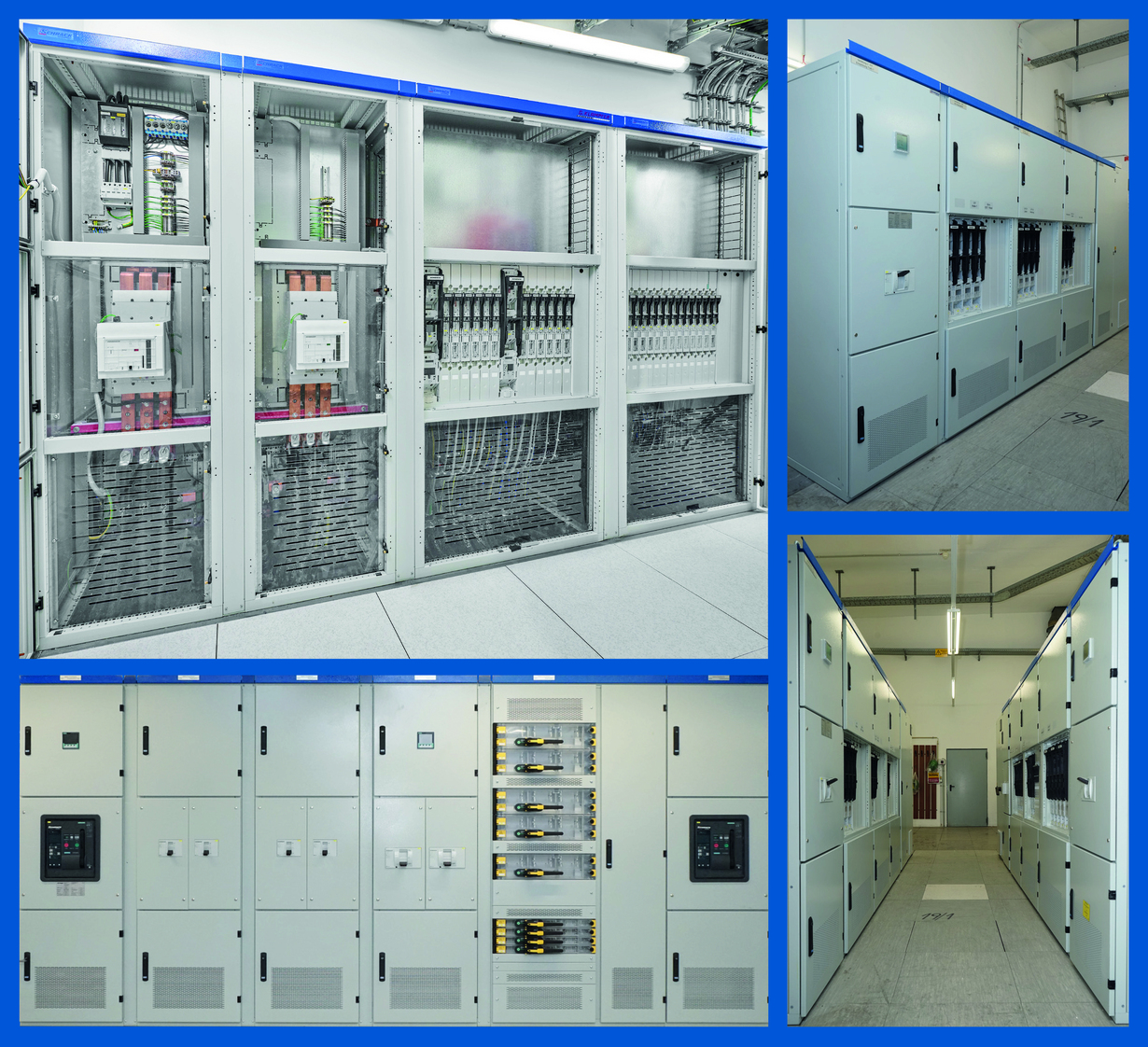

Modul 4000TT is a type-tested modular switchgear and controlgear assembly for rated currents up to 5000 A!
Our state-of-the-art power distribution for buildings, hospitals, commercial enterprises, industrial installations, etc...
Using Schrack Modul 4000TT makes it effortless to build a technically and economically advanced solution.
- The symmetric design minimises and optimises the number of components and busbars, which reduces installation time.
- The possible inside sectioning options up to form 4 offer higher protection for people and devices.
- The three different installation options make the system extremely flexible in use.
- Fixed module installation
- Plug-in module technology
- Full plug-in technology - Short downtimes
- Intelligent combination and extension options
- High system safety and maximum operational reliability
Fixed module installation: in a fixed installation, all switchgear is permanently installed and connected in the system.
Plug-in module technology: here, the switchgear is plugged in with the main busbar via contacts on the primary side and the cable is permanently connected on the secondary side.
Full plug-in technology: here, the switchgear is wired with plug-in contacts on the primary side as well as on the secondary side, which are used to connect the modules to the main busbar and the outgoing terminal. Exchanging the modules is a matter of only a few minutes.
Special features:
- IEC/EN 61439-1+2 type-tested modular power control unit up to rated operational voltage of 690 V and a maximum rated short-term current carrying capacity up to 100 kA, RAL 7035
- IP31 to IP55, form 1 to form 4, 3- and 4-poles, for all mains systems: TN-C, TN-C-S, TN-S, IT
- Fixed module design or with withdrawable circuit-breakers, withdrawable technology available for retrofitting, earthquake-proof and arc-fault-proof design is available on demand
- TTCALC software for easy configuration of bills of materials and project plans
