Schrack offers all-in-one solutions for distribution panels which includes custom-built inserts and modules.
Modul 2000TT is a state-of-the-art, partly pre-configured control panel system tested according to IEC/EN 61439 for applications from 630 to 1600 A.
The input panels are tested and equipped with permanently installed size MC4 circuit breakers. The output panels are type tested with LV HBC in-line fuse switches, size 00 to 3.
Low-voltage switchgear is the heart of any power distribution system. With its type-tested distribution boards, Schrack Technik ensures uninterrupted operation and a highly reliable supply.
Modul 2000TT is a state-of-the-art low-voltage switchgear and controlgear assembly for applications in the range of 630 A to 1600 A - tested according to the IEC/EN 61439 standard. The input panels are tested and equipped with permanently installed size MC4 circuit breakers. The output panels are tested with LV HBC in-line fuse switches, size 00 to 03. Protection rating IP31 in standard version without door up to 1600 A, IP54 is possible up to 1250 A. Standard delivery includes mechanical baying connectors and busbar connections.
EN 61439-2
A switchgear and controlgear assembly is defined as a set of one or more low-voltage control instruments with the associated equipment for control, measurement, signalling, protection and regulation, including all required electrical and mechanical connections and parts.
EN 61439-2 defines the special requirements for electrical switchgear and controlgear assemblies with regard to
Partially pre-assembled ACB panels come with the main busbar and the connection to the circuit-breaker already mounted.
These panels are manufactured and tested according to the EN 61439 standard, so you need not carry out the heat and short-circuit calculations yourself.
The matching covers are also included, which prevents accidental contact with the live parts.
To complete the installation, you only need to install the appropriate circuit breaker.
Optionally, the panel can be equipped with metering devices and a surge arrester.
Expert tip: one circuit breaker size MC4 for all current ratings from 630 A to 1600 A
When selecting the circuit-breaker for your application, be careful to match the cable type and rating as well as the overall equipment and system protection.
Partially pre-assembled LV HRC outgoing panels come with the main busbar already mounted. Also, the mounting holes for HRC in-line fuse switches are already drilled with the appropriate pitch, and fitted with insert press nuts for effortless completion of the installation. These panels are manufactured and tested according to standard EN 61439, so you need not carry out all the calculations yourself.
The matching covers are also included, which prevents accidental contact with the live parts. The panels can be equipped with in-line fuse switches size 00 to size 03 depending on the requirements.
Expert tip:
The optional profile system inserts, consisting of front panels and side panels, prevent contact with live parts.
Each set contains all the necessary parts to ensure comprehensive touch protection.
The earth connection between the enclosure and the front panels is established by the Modul 2000TT die-cast latch.
There are recesses provided for HRC in-line fuse switches or a circuit breaker.
Front panels with fan system ensure optimum convection cooling within the enclosure.
Expert tip: According to EN 61439, all metallic parts of an electrical distribution board enclosure must be connected to the protective earth. The Modul 2000TT enclosure system ensures this safe protective earth connection by fitting the profile system inserts with an innovative metal die-cast latch.
Empty module spaces, e.g. HRC in-line fuse switches can be covered with blinds (ISA05357--).

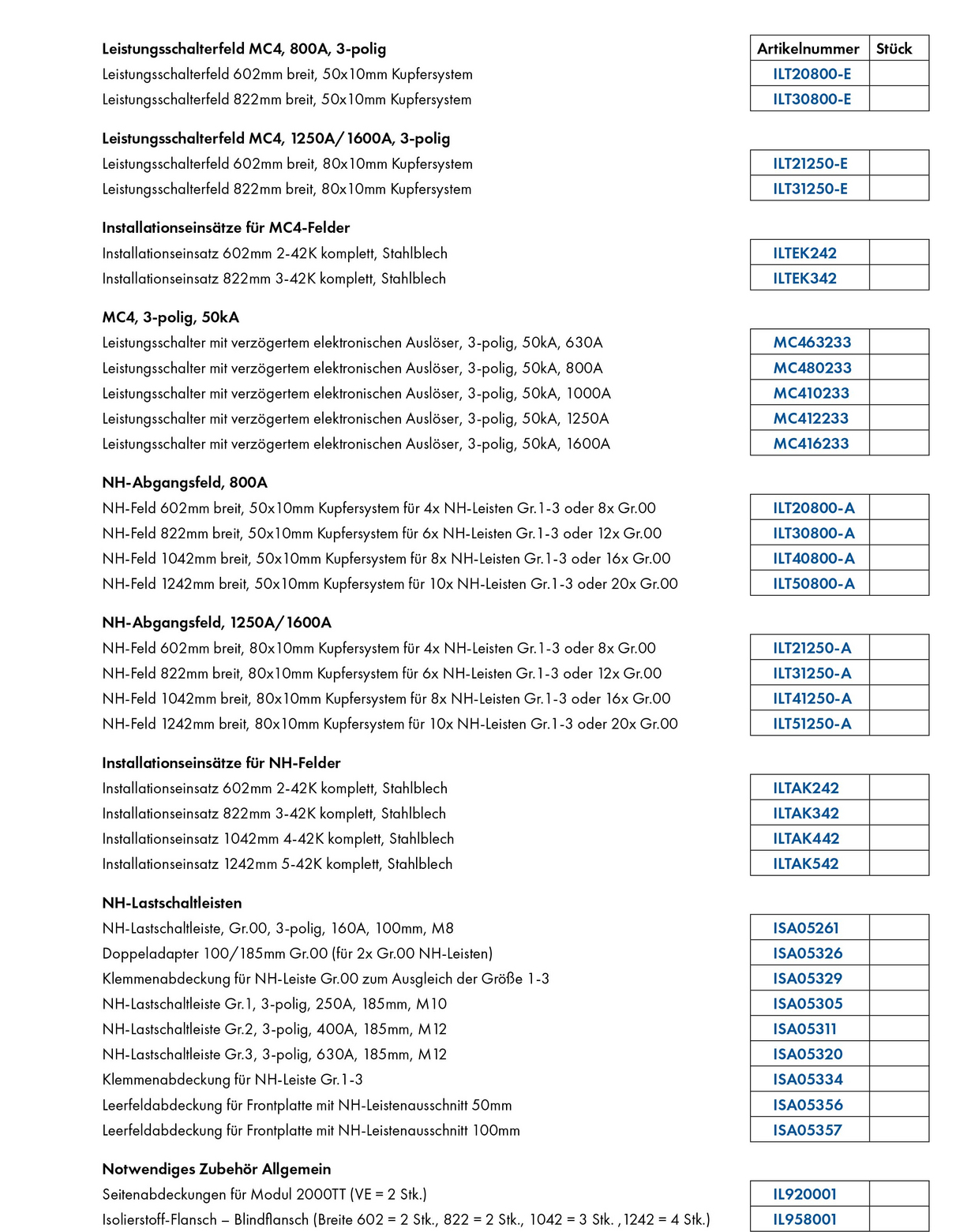

At Schrack Technik, you can assemble the Modul 2000TT system as you need it.

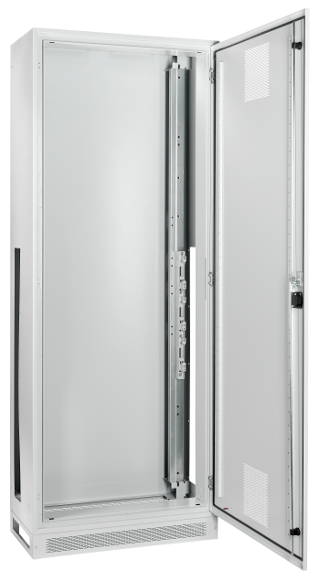

The enclosure body is tested according to EN 62208 for use in type-tested Modul 2000TT distribution enclosure systems.
The MC4 busbar sets include all the necessary components to equip the Modul 2000TT blank enclosure body with the circuit breaker main busbar.
The busbars are already pre-bent and pre-drilled to ensure quick and precise installation in the Modul 2000TT enclosures bodies.
The matching covers are already included in the sets. They prevent accidental touching of the live parts.
By combining empty enclosure bodies with the busbar sets, you can easily assemble the desired Modul 2000TT distribution system without having to carry out additional tests or calculations yourself (heat and short-circuit calculations).
The NH busbar sets include all the necessary components to equip the Modul 2000TT blank enclosure body with the HRC main busbar.
The busbars are already pre-bent and pre-drilled to ensure quick and precise installation in the Modul 2000TT enclosures bodies.
The matching covers are already included in the sets. They prevent accidental touching of the live parts.
By combining empty enclosure bodies with the busbar sets, you can easily assemble the desired Modul 2000TT distribution system without having to carry out additional tests or calculations yourself (heat and short-circuit calculations).
At Schrack Technik, you can purchase the Modul 2000TT system for self-assembly.
All items are in stock in our distribution centre. Within only 24 hours we deliver all necessary components to any location in Austria (construction site, company, ...)
Your benefits at a glance:
At Schrack Technik, you can purchase the Modul 2000TT system as partially pre-assembled switchgear system.
All components are in stock in our distribution centre. Within just 24 hours, all the necessary components can be at your construction site in Austria.
With the pre-assembled busbar system the installation can be completed very quickly and easily.
Your benefits at a glance:
At Schrack Technik, you can purchase the Modul 2000TT system fully assembled.
In this case, all you have to do is take the switchgear system into the low-voltage room on the construction site and connect it.
Schrack Technik provides the complete documentation
Your benefits at a glance:
Safety, reliability, performance and flexibility - all these characteristics are associated with the LV HRC fuse switch disconnectors from SCHRACK Technik.
The LV HRC in-line fuse switch disconnectors meet all requirements for modern power distribution.
LV HRC in-line fuse switch disconnectors for transformer installation are the basis for efficient energy management.
Thanks to the wide range of accessories and flexible connection options, these products offer the optimum solution for all applications.
Your benefits at a glance:
