Schrack Technik GmbH

Schrack Technik offers an all-in-one solution for distribution panels which includes custom-built inserts and modules.

Your special advantages and features

  • Modular design
  • On-wall or flush mounting
  • Available for prompt delivery
  • 1-5 meter widths
  • Easy planning with Schrack Design

Product overview





General information about Modul 2000 distribution enclosures

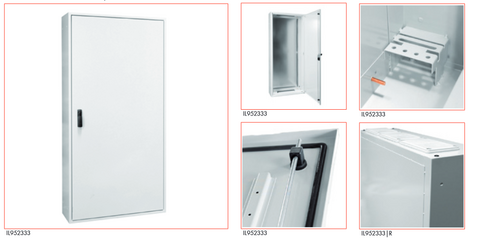

Verteilerkasten Modul 2000
Verteilersystem Modul 2000

Modular configuration for versatile installation

Modular sheet steel enclosures in a rugged design with comfortable rounded corners to be used as:

  • On-wall distribution or meter enclosures
  • In-wall distribution or meter enclosures
  • Doorless distribution or meter enclosures
  • Up to 15 meter slots and latched doors (the 300 mm and 400 mm deep versions come with swing handle and 3-point lock) which can be hinged left or right
  • Easy installation in all locations, because the device compartment is attached to a swivel-arm and can be inserted after mounting. 6 different mounting depths are possible for DIN rails.

  • Front covers are available in sheet steel or plastic with a fast-mounting latch to cover 45 mm circuit breakers or in-line units or as dummy front plate.
  • Certified accordingto EN 62208:2011 and EN 60529:1991
  • Protection insulated according to ÖVE-IM 12



Modul 2000 distribution boards

Distribution enclosures Modul 2000 - installation

Verteilerkasten Schrack Technik
Verteilerkasten Montage

Download der Montageanleitung



Buying a distribution enclosure? Don't forget the available accessories!

You would like to buy a distribution enclosure? Take a look at the accessories we have available!

  • Mounting material
  • Locks
  • Meter plug-in terminals
  • Blanking strips
  • Plinths
  • etc.
