Domestic distribution units, consumer units, small distribution boards, and media distribution boxes

Domestic Consumer Unit Enclosures, Media Enclosures and Distribution Boards

Products in our Online Shop

Schrack Technik offers an all-in-one solution for distribution panels which includes custom-built inserts and modules.

Your special advantages and features

Large variety of models
1-5-row equipment and media distribution boards
Top availability
Easy planning with Schrack Design
Great variety of accessories

Product overview

Series TOPO IP40

The TOPO IP40 Series consumer units are supplied fully assembled with all necessary parts, including installation instructions.

Specifications of the consumer units:

Flush or on-wall mounting
Opaque or transparent door made of ABS, which provides elasticity and strength
Models with 4, 24 or 72 pitch positions, which determine the width of the panel body
Available with 1 row or 4 rows - the rows indicate the number of rails that are installed. This determines the space available for fuses and switching components
Insulated terminal inside the plastic housing made of self-extinguishing material (glow wire test up to 960 °C, heat resistant up to 120 °C)

The following products have been added to the product range of the Series TOPO IP40:

Flush mounted consumer units

1 row, 4 pitch positions, transparent door, IP40, H=236 W=143 D=98 mm (BK080005--)
1 row, 4 pitch positions, opaque door, IP40, H=236 W=143 D=98 mm (BK080055--)

On-wall mounted consumer units

1 row, 24 pitch positions, transparent door, IP40, H=236 W=503 D=112mm (BK080109--)
1 row, 4 pitch positions, transparent door, IP40, H=236 W=143 D=98mm (BK080110--)
4 rows, 72 pitch positions, opaque door, IP40, H=652 W=396 D=112mm (BK080158--)
1 row, 24 pitch positions, opaque door, IP40, H=236 W=503 D=112mm (BK080159--)
1 row, 4 pitch positions, opaque door, IP40, H=236 W=143 D=98mm (BK080160--)

A helpful tool available for you

Schrack Design - supporting your daily work

Schrack Design

Domestic distribution units/small distribution enclosures in-wall mounted

Fuse box Schrack Technik — Fuse box KVM and KVH

In-wall domestic distribution unit (consumer unit) for solid walls KVM and partition walls KVH

1- to 4-row design for solid or partition walls
Frame and door made of coated sheet steel
2 frame designs available: flat bevel (approx. 1 mm) or high bevel (approx. 6 mm)
Module covers and wall boxes made of self-extinguishing plastic, low-halogen
Side wiring conduit with cable retainers for clear wiring
With integrated spirit level, 3D-plaster compensation (up to 18 mm
difference)

In-Wall Domestic Distribution Unit Solid Wall KVM in Our Online Shop

In-Wall Domestic Distribution Unit Partition Wall KVM in Our Online Shop

In-wall media enclosures for solid walls MVM and partition walls MVH

Media distributor Schrack Technik — Media distributor for masonry MVM and cavity wall MVH

Media enclosure 3 to 4-row
Solid walls (BK073.) or partition walls (BK074.)
Frame and door made of coated sheet steel, with ventilation slots
Equipped with one or two mounting rails in the top section, each with 12+2HP for mounting patch modules
Micro-perforated mounting plate for active and passive modules included
Device holder and a 2-way socket incl. EURO2 adaptor with plug-in terminal up to 2.5 mm² available as an accessory

Media Enclosures in Our Online Shop

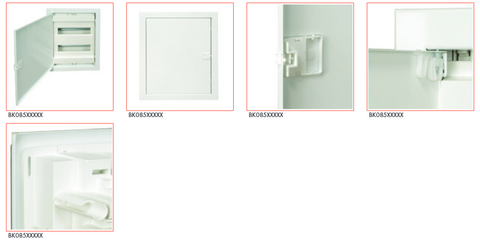

In-wall domestic distribution unit (consumer unit) Series Amparo IP40 with steel sheet door

Control box Amparo Schrack Technik — Small distribution board series Amparo IP40

Consumer units (fuse boxes) of the Amparo series come equipped with the enclosure body, module carrier, plaster and module covers, neutral and protective earth terminals, assembly instructions, mounting material for partition wall installation, mounting brackets and self-adhesive labelling sheet with graphic representations (pictograms).

Frame and door made of coated sheet steel
High bevel frame version (approx. 6 mm)
Module covers and wall box made of ABS, halogen-free
Incl. PE and N terminals, latch

In-Wall Consumer Units Series Amparo in Our Online Shop

Montageanleitungen

BK0802xxx

BK0851xxx

Additional product details

Schrack enclosures are the right choice for every application in the commercial or industrial sector.
